Big O Notation: An Interactive Guide
Building intuition to recognize time complexity from code patterns.

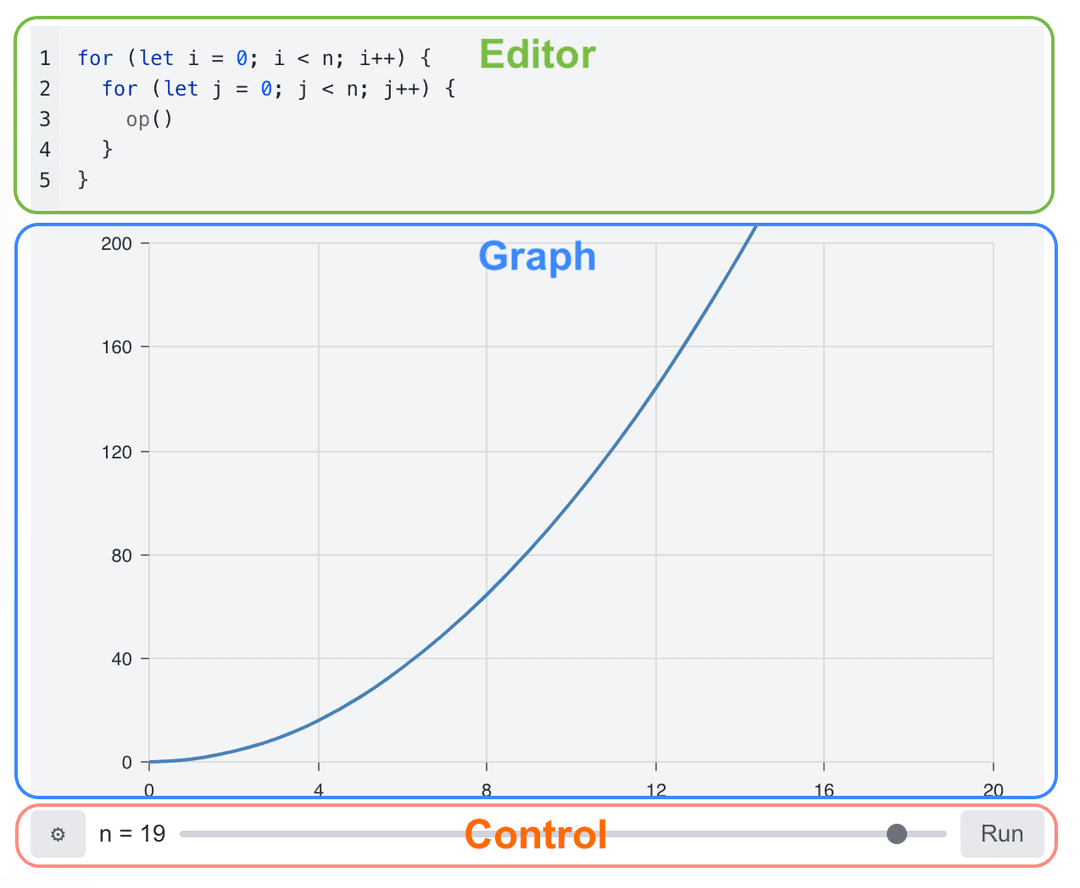

The Visualizer
The visualizer consists of three components:
- Code Editor: JavaScript that executes across a range of input sizes.
- Graph Chart: Displays operation counts as
nincreases. - Control Panel: Controls the range of inputs via slider.
Use op() markers to count operations.
As n increases, the visualizer tracks how many times each marker is called.
Additional features:
- Pass values to specify growth rates, e.g.,
op(n)for linear orop(n*Math.log2(n))for linearithmic. - Use
plot()to overlay theoretical curves, e.g.,plot(n*n)for quadratic comparison. - Add
op.scope()before inner loops to isolate their contribution.
Common Complexities
O(1) - Constant
Operations that execute in fixed time regardless of input size. Example: Array element access.
O(log n) - Logarithmic
Occurs when the problem size is halved at each step. Logarithmic growth is remarkably slow—log₂(1,000,000) is approximately 20. Example: Binary search.
O(n) - Linear
One complete pass through the input. Often represents the lower bound for problems requiring examination of all data. Example: Finding the maximum value in an array.
O(n log n) - Linearithmic
The characteristic complexity of efficient divide-and-conquer algorithms. Marginally worse than linear, but substantially better than quadratic. Example: Merge sort, quicksort.
O(n²) - Quadratic
Results from nested iteration over the input. Manageable for small datasets, but performance degrades rapidly beyond a few thousand items. Example: Bubble sort, naive matrix multiplication.
O(2ⁿ) - Exponential
Each increment of input size doubles the total work. Visualize it as a binary tree that expands level by level.
The code mirrors this structure—each recursive call spawns two more calls. Example: Naive recursive Fibonacci, subset enumeration
O(n!) - Factorial
Each increment of input size multiplies the total work. The recursion tree branches from 1 up to n at each level, leading to extremely rapid growth. Even for n ≈ 60, the total number of operations exceeds the number of atoms in the universe.
The code reflects this branching pattern—each call spawns a number of recursive calls equal to the current n. Example: generating all permutations naively.
Three Core Principles
1. Constants Don't Matter
C · O(f) = O(f). Running the same loop twice still yields O(n). Big O cares about the shape of growth, not the exact numbers.
2. Largest Term Dominates
O(f) + O(g) = O(max(f, g)). When combining operations of different complexities, the fastest-growing term determines the overall behavior. The slower-growing terms become negligible as n increases.
3. Nested Operations Multiply
O(f) · O(g) = O(f · g). When one operation is nested inside another, their complexities multiply. The inner work executes once for each iteration of the outer operation.
The Master Theorem
For recursive divide-and-conquer algorithms: T(n) = aT(n/b) + O(nᵈ)
T(n) is runtime for input size n.
- a - number of subproblems
- b - division factor
- d - exponent of work done outside recursion
The theorem determines which grows faster: the recursive splitting (a) or the work performed at each level (nᵈ).
- If
a = bᵈ: O(nᵈ log n) (Balanced) - If
a < bᵈ: O(nᵈ) (External work dominates) - If
a > bᵈ: O(nlogba) (Recursion dominates)
Merge Sort: The Balanced Case
a=2, b=2, d=1 → Since 2 = 2¹, the result is O(n log n)
Binary Search: Constant Work Case
a=1, b=2, d=0 → Single recursive call with constant work yields O(log n)
Matrix Multiplication: Recursion Dominates
Strassen's algorithm (a=7, b=2, d=2) reduces subproblems from 8 to 7, achieving O(n2.81) instead of the naive O(n3).
Practical Example: Merge Sort
Different markers track distinct aspects of the algorithm's behavior:
op()- Counts total recursive calls across all levels (O(n))op1()- Tracks merge operations within each recursion level (O(log n), scoped)op2()- Measures cumulative merge work across the entire algorithm (O(n log n))
Comparative View
All major complexity classes on a single chart. Note how exponential and factorial growth rapidly overwhelms the others.
Key Points
- Big O characterizes growth patterns, not precise runtime measurements
- O(n log n) represents the lower bound for comparison-based sorting
- Exponential and factorial complexities remain practical only for small inputs (typically n < 20)
- The Master Theorem provides a systematic way to analyze divide-and-conquer algorithms
- The visualizer can be useful for building intuition about algorithmic behavior
